Product Details
＋
DESCRIPTION
Waldmann Part Number: 114310000-00806668

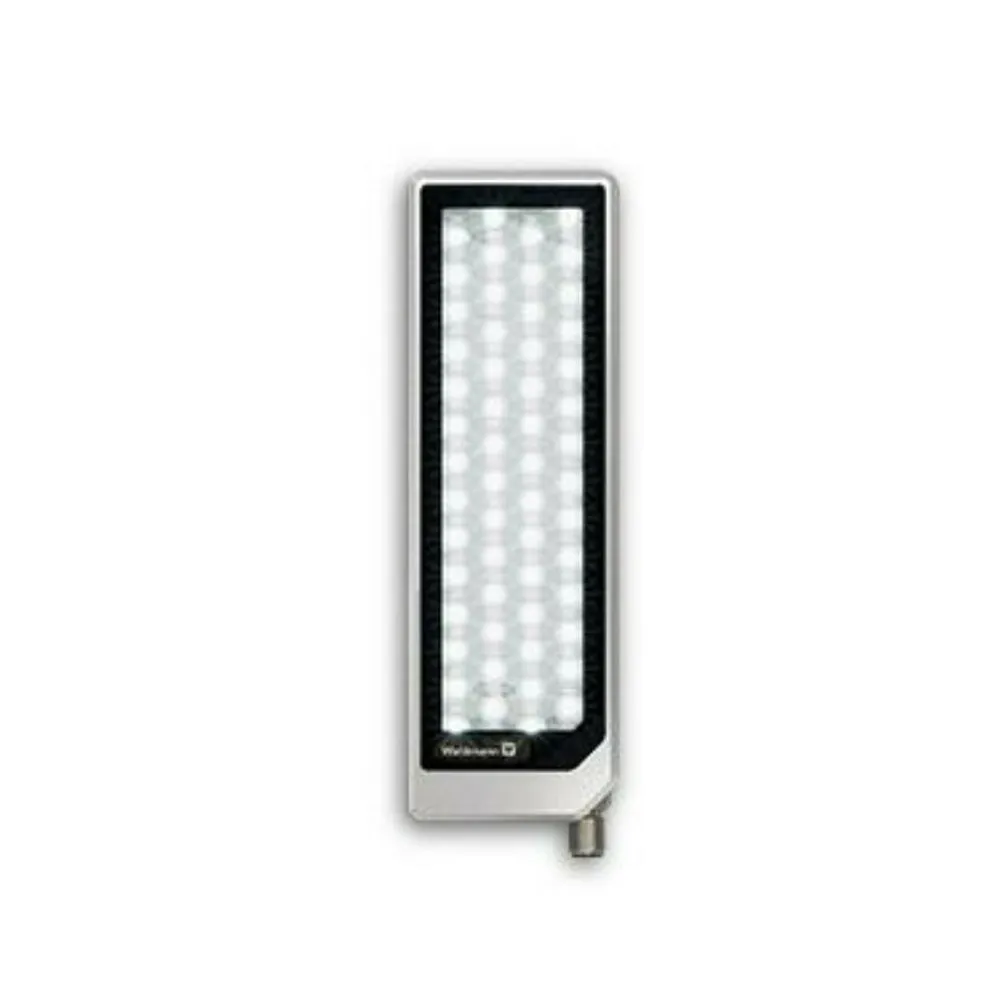

Waldmann's ACURIA is built with precision which delivers state of the art efficient lighting technology, along with the safest protection against high temperatures, including coolant and lubricant-resistant materials. The ACURIA can withstand even the harshest environmental conditions. There are multiple sizes to fit all machine requirements. This powerful machine light includes a simple control and the most seamless integration that guarantees easy installation. Step dimming can be achieved with use of external controller, provided, or through the machine controller. ACURIA is milled from a solid billet without unnecessary seals. ACURIA passes the long-term tightness test thanks to outstanding impermeability. ACURIA's innovative, rotatable M12 connector plug ensures maximum flexibility and a safer cable run. This means the cables of surface-mounted lights can be better protected against damage from chips. ACURIA's shock and vibration-resistant design makes it ideally suited to withstand extreme stresses. This fixture is surface mounted with pins that you afix to your surface using the included template. Also includes a 16' cord with a M12 connector molded into it on one end and free stranded wires on the other end. Cord can be ran back to power source or spliced into existing wiring.
- Surface Mounted; Use provided Snap-Fit Pins to mount fixture
- Glare Controll; Honeycomb Optics to direct light
- Optimal Protection; withstands coolant, dust, vibration and shock
- 60,000 hours maintenance-free operation
***Product image may be different than actual product.
SPECIFICATIONS
| Brand: | Waldmann |
| Series: | ACURIA.perfect |
| Model: | APA 1400/850/MS |
| Current AC/DC: | DC |
| Voltage: | 24 |
| Length (in): | 8.46 |
| Width (in): | 2.75 |
| Bulb: | |
| Mounting Type: | Snap-Fit Pins |
| Wattage: | 12 |
| Lumens: | 1200 |
| Color Temperature: | 5000K |
| Color Rendering Index (CRI): | 80 |
| Lens Material: | Glass |
| Lens Style: | Glare Control Screen |
| Protection Index: | IP67 |
| Operation: | External Controller |
| Technology: | Multi-Stage Dimmable with External Controller |
| Connection: | 16' Cord with molded M12 Connector |
| Certification: | CE, cETLus |
| Product Warranty: | 5 Years |
ACCESSORIES
Control Options:
|
Capacitive contact sensor with M12 plug connectors |
|
|
Laser-based time-of-flight sensor with M12 plug connectors |
|
Connection Options:
|
5-pin A-coded 5 m; 5 x 0.34 mm² Cable diam. 5 mm (Included) |
|
|
5-pin A-coded 5 m; 5 x 0.34 mm² Cable diam. 5 mm 90° Angle |
|
