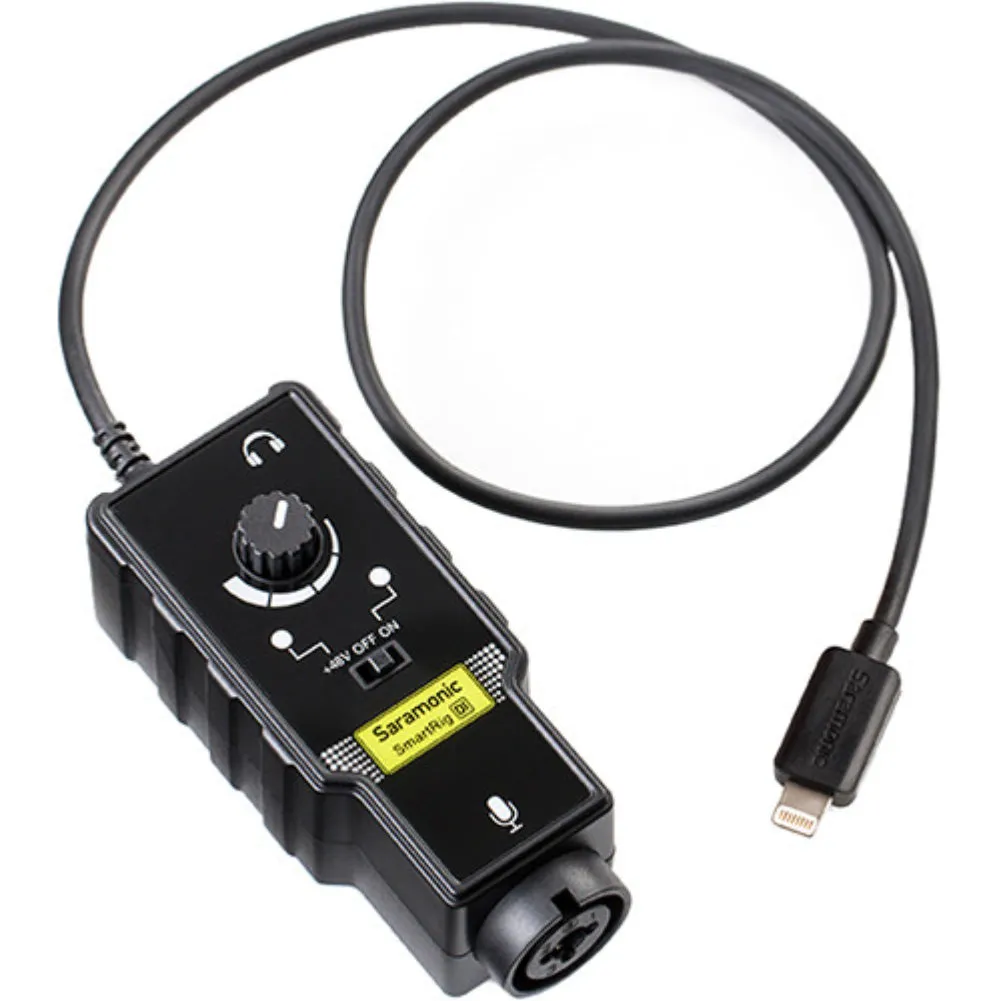

The SmartRig Di from Saramonic is a versatile single-channel audio interface designed for connecting professional microphones or guitars to your iPhone, iPad, or iPod touch. Featuring a lightning connector output, this interface enables you to record high-quality sound or music directly to your iOS portable device with ease. Whether you're recording interviews, music performances, or podcasts, the SmartRig Di provides a reliable solution for capturing studio-grade audio on the go.

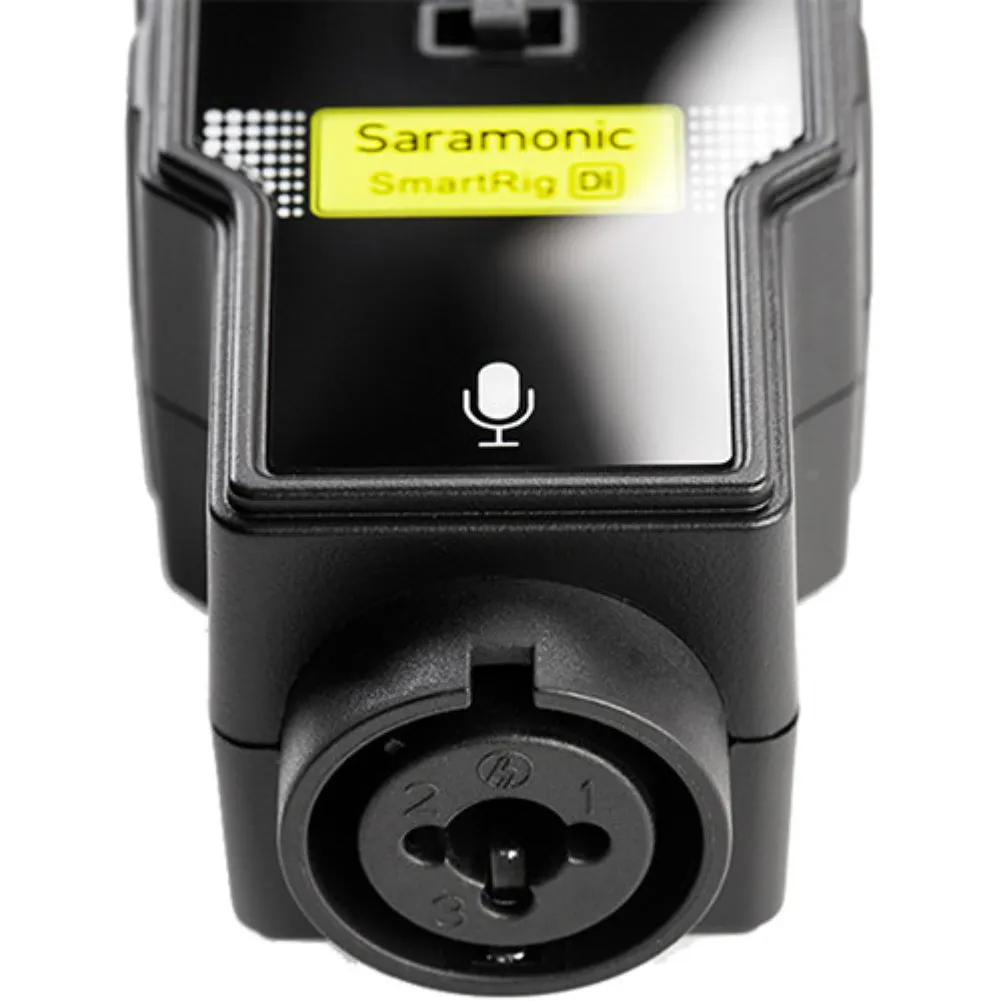

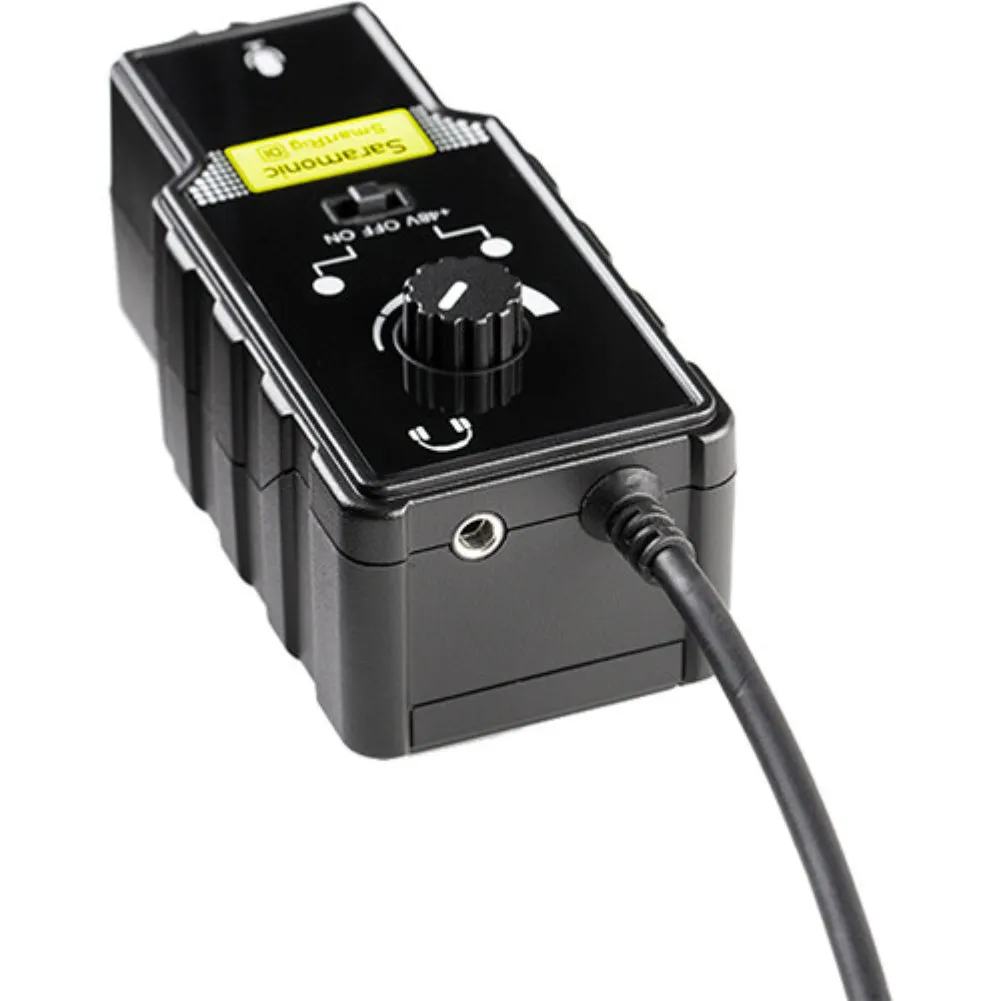

The SmartRig Di provides 48V of phantom power using a 9V battery for condenser microphones and is equipped with a single combo 1/4" XLR input, and an 1/8" headphone output for real-time monitoring. In addition, there is a rotary gain control that makes it easy to set levels.
Specifications
- Combo 1/4" and XLR Input
- Lightning Output Connector
- Powered by a Single 9V Battery
- 48V Phantom Power
- 1/8" Headphone Output for Monitoring
- Gain Control
| Maximum Sampling Rate |
48 kHz / 16-Bit
|
| Number of Microphone Inputs |
1
|
| Gain/Trim Range |
Up to 23 dBu
|
| Analog Audio I/O |
1x Combo XLR-1/4" TRS Input
|
| 1x 1/8" / 3.5 mm TRS Headphone Output | |
| Phantom Power |
48 V, Selectable On/Off
|
| Host Connection |
1x Lightning
|
| Frequency Response |
20 Hz to 20 kHz ±0.5 dB
|
| SNR |
80 dB (-30 dBu Input, 1 kHz)
|
| THD |
< 0.01% (-30 dBu Input, 1 kHz)
|
| Power Requirements |
USB Bus Power
|
| Battery Type |
1x 9V
|
| Dimensions |
8.8 x 4.1 x 4.2 cm
|
| Weight |
75 g
|
What's Included
1 x Saramonic SmartRig Di, Single-Channel Mic and Guitar Interface with Lightning Connector for iOS Devices
