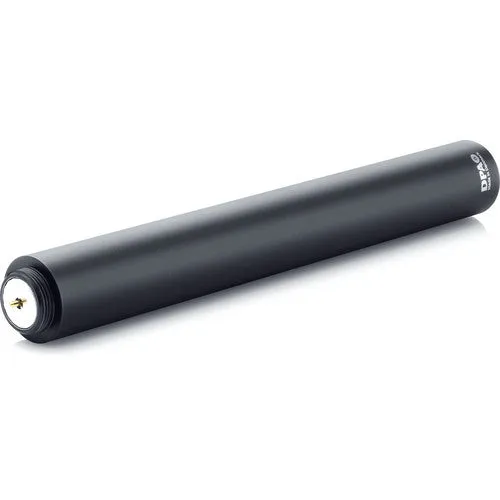

The DPA MMP-A Preamplifier is a transformerless preamplifier and output stage for DPA Reference Standard MMC series capsules. The modular capsules attach to the MMP-A and the preamplifier provides an XLR output, high quality transformerless output signal and 48V phantom power (via external source).
Compatible with the Following Capsules
MMC4011 Cardioid Microphone Capsule
MMC4015 Wide Cardioid Microphone Capsule
MMC4017 Shotgun Microphone Capsule
MMC2006 Twin Diaphragm Omni Microphone Capsule
MMC2011 Twin Diaphragm Cardioid Microphone Capsule
DPA Microphones MMP-A Specs
Output Connector | XLR-3M. Pin 1: shield, Pin 2: signal phase, Pin 3: - phase |
Low-Cut Filter | -3 dB: 8Hz |
Noise | 0.5 µV |
Power Supply | 48 V Phantom power (± 4 V) Output voltage, RMS: > 5V Output voltage, peak: > 16V Type of electronic circuit: Active Current consumption: 2.8mA |
THD | @1VRMS, 1kHz: < 0.2 % |
Dynamic Range | 138 dB |
Attenuation | 0 dB, -20 dB |
Output Impedance | < 200 ohm |
Output Balance Principle | Impedance balancing with Active Drive |
CMRR | > 60dB |
Temperature | -40 to 113 °F (-40 to 45 °C) |
Relative Humidity | Up to 90 % |
Cable Drive Capability | 328' (100m) |
Color | Matte Black |
Dimensions | 5.8 x 0.75" (147 x 19mm) |
Weight | 4.9 oz (140g) |
Package Weight | 0.45 lb |
Box Dimensions (LxWxH) | 10.7 x 3.2 x 1.3" |
