Product Details
＋
Key Features
- For Presenters and Performers
- Rugged Handheld Mic/Transmitter
- Cardioid Dynamic Mic Capsule
- All-Metal Rackmount Receiver
- 100 Autoscan Frequencies
- Large LCD Display
- Perform 12-Hours on Two AA Batteries
- Rackmount Hardware
- Expand to 20 Mic Channels / 295' Range

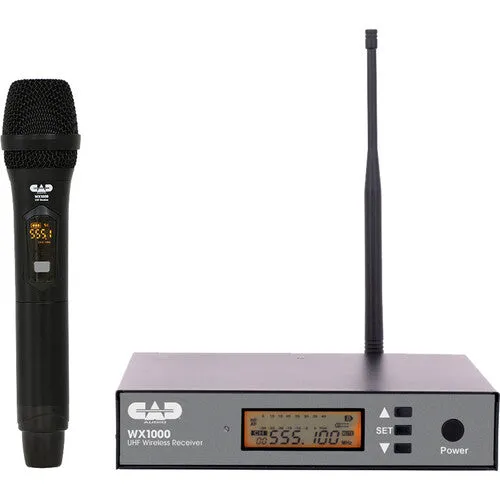

The CAD WX1000BP is a versatile rackmount wireless cardioid handheld microphone system that brings reliable transmission and quality audio to presenters, singers, performers, clergy, and instructors. Fast to set up and easy to operate, it is suitable for A/V installations in business and educational settings, houses of worship, or on musical stages.
TX1000 Handheld Mic Tailored for Clear Vocals and Speech
- The TX1000 handheld mic/transmitter is equipped with a dynamic mic capsule optimized for clarity and speech intelligibility. Its cardioid polar pattern focuses audio capture on the speaker or singer holding the mic, minimizing unwanted background noise and feedback.
Easy-to-Use System That's Quick to Set Up
- Quick to set up with the press of a button, the receiver autoscans 100 selectable frequencies to locate a clean RF channel that's free from interference and delivers clear audio at a range up to 295'. Use the Set button to sync the receiver with the transmitter via IR, and you're ready to go.
- The handheld mic/transmitter features a volume control to accommodate varying speech/vocal levels. It provides up to 12 hours of operation on two AA batteries with a battery-level indicator on both the transmitter and receiver, so you know when to replace the batteries.
- Backlit LCD displays on the transmitter and receiver show frequency, mute status, battery life, and more.
- The receiver's rear-panel connections include a balanced XLR and an unbalanced 1/4" output connector to connect to any mixing board or PA system.
- The all-metal, half-rack receiver can be rackmounted in portable flight cases or for permanent installations with the included hardware.
WX1000HH Wireless System at a Glance
- Handheld mic/transmitter included
- Dynamic cardioid mic capsule
- Frequency-agile design with 100 switchable frequencies
- Up to 295' range between transmitter and receiver
- XLR balanced and 1/4" unbalanced output connectors
- For setups requiring multiple wireless microphones, up to 20 systems can operate at the same time
- Rugged, all-metal construction
- Autoscan finds the optimal frequency setting
- IR sync wirelessly matches transmitter and receiver frequencies
- Transmitter and receiver feature low battery indicators
- Transmitter utilizes 2 AA Batteries for over 12 hours of operation
- Rackmounting hardware and antenna relocation kit included
CAD WX1000HH Specs
System
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 100 |
| Included Transmitters | 1 x Bodypack |
| Diversity | Non-Diversity |
| RF Frequency Band | 510 to 570 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 295' / 89.9 m (Line of Sight) |
| Max Transmitters per Band | 20 |
| Built-In Recorder | No |
| Control App Support | No |
| Latency | < 3 ms |
| Dynamic Range | >100 dB |
| Encryption | None |
| Modulation | FM |
| SNR | >85 dB |
| THD | <0.5 % |
Receiver
| Receiver Type | Tabletop / Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 1 x Rod, TNC (Rear-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4" TS Female Unbalanced Output |
| Frequency Response | 30 Hz to 18 kHz |
| Network I/O | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | None |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | VDC Included |
| DC Input Power | 12 VDC at 1A |
| Display & Indicators | 1 x Backlit LCD (AF Level, Channel, Mute, RF Level, Transmitter Battery Status) |
| Housing | Metal |
| Dimensions | 16 x 12.1 x 2.8" / 40.6 x 30.7 x 7.1 cm |
| Weight | 3.3 lb / 1.5 kg |
Transmitter
| Transmitter Type | Handheld |
| RF Output Power | 10 mW |
| Audio I/O | None |
| Auto-Level Control | No |
| Frequency Response | 30 Hz to 18 kHz |
| Sync Method | IR |
| Antenna | 1 x Internal |
| Power Requirements | Battery |
| Battery Type | 2 x AA |
| Approx. Battery Life | 12 Hours |
| Display & Indicators | Backlit LCD (Audio Level, Battery Status, Channel, Signal Strength) |
| Housing | Metal |
Microphone
| Microphone Type | Handheld Capsule |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| Frequency Range | 30 Hz to 18 kHz |
Charging Case
| Capacity | Not Specified by Manufacturer |
