Product Details
＋
Key Features
- For Presenters, Performers & Musicians
- WX9 Cardioid Lavalier & WX7 Headset Mics
- WX5 Guitar Cable
- Lightweight Bodypack Transmitter
- All-Metal Rackmount Receiver
- 100 Autoscan Frequencies
- Large LCD Display
- 12-Hour AA Batteries
- Rackmount Hardware
- Expandable to 20 Mic Channels/295' Range

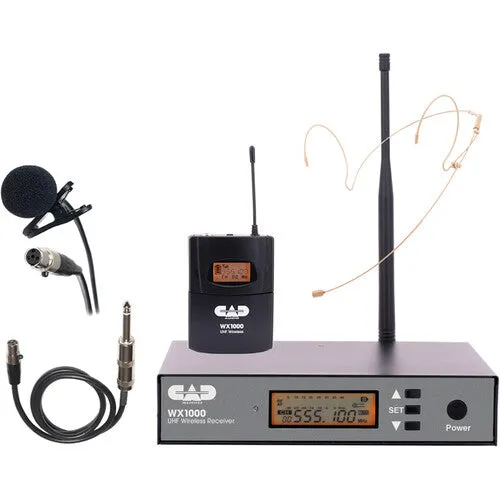

reat for a wide variety of applications, the CAD WX1000BP is a versatile rackmount wireless bodypack microphone system that includes a lavalier mic, a headset mic, and a guitar/instrument cable. Easy to use, it offers reliable transmission and quality audio to presenters, performers, clergy, instructors, and musicians working in business and educational settings, houses of worship, broadcast studios, or on musical stages.
Lavalier and Headset Mics Optimized for Lectures and Presentations
- The WX9 lavalier microphone delivers a natural sound optimized for speech intelligibility. Its directional, cardioid pickup pattern helps to reject unwanted background sound and feedback, making it ideal for use onstage or in spaces with loud sound reinforcement.
- The WX7 headset is discreet, stable, and easy to place over either ear. It provides improved clarity and additional protection against feedback when compared to a lavalier mic.
Guitar/Instrument Cable for Freedom Onstage
- The heavy-duty WX5 cable connects your guitar, bass, or other instrument to the bodypack transmitter. The cable is terminated with a 1/4" connector on one end and a TA4F connector on the other.
Easy-to-Use System That's Quick to Set Up
- Quick to set up at the press of a button, the frequency-agile receiver autoscans 100 selectable frequencies to locate a clean RF channel that's free from interference and delivers clear audio at a range up to 300'. Just use the Set button to effortlessly sync the receiver with the transmitter via IR, and you're ready to go.
- The bodypack transmitter is equipped with a TA4M input connector to connect either the lavalier, headset, or guitar cable. It features a volume control to accommodate varying mic and guitar levels. The transmitter provides up to 12 hours of operation on two AA batteries, with a battery-level indicator on both the transmitter and receiver so you know when to replace the batteries.
- Backlit LCD displays on the transmitter and receiver show frequency, mute status, battery life, and more.
- The receiver's rear-panel connections include a balanced XLR and an unbalanced 1/4" output connector to connect to any mixing board or PA system.
- The all-metal, half-rack receiver that can be rackmounted in portable flight cases or for permanent installations with the included hardware.
WX1000BP Wireless System at a Glance
- Headset and lavalier microphones, plus guitar/instrument cable included
- Frequency-agile design with 100 switchable frequencies
- Up to 295' range between transmitter and receiver
- XLR balanced and 1/4" unbalanced output connectors
- For setups requiring multiple wireless microphones, up to 20 systems can operate at the same time
- Rugged, all metal construction
- Auto scan finds the optimal frequency setting
- IR sync wirelessly matches transmitter and receiver frequencies
- Transmitter and receiver feature low battery indicators
- Transmitter utilizes 2 AA Batteries for over 12 hours of operation
- Rackmounting hardware and antennal relocation kit included
CAD WX1000BP Specs
System
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 100 |
| Included Transmitters | 1 x Bodypack |
| Diversity | Non-Diversity |
| RF Frequency Band | 510 to 570 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 295.3' / 90 m (Line of Sight) |
| Max Transmitters per Band | 20 |
| Built-In Recorder | No |
| Control App Support | No |
| Latency | < 3 ms |
| Dynamic Range | >100 dB |
| Encryption | None |
| Modulation | FM |
| SNR | >85 dB |
| THD | <0.5 % |
Receiver
| Receiver Type | Tabletop / Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 1 x Rod, TNC (Rear-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4" TS Female Unbalanced Output |
| Frequency Response | 30 Hz to 18 kHz |
| Network I/O | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | None |
| Standalone Audio Interface Capable | No |
| Approximate RF Sensitivity | 108 dBm |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | VDC Included |
| DC Input Power | 12 VDC at 1A |
| Display & Indicators | 1 x Backlit LCD (AF Level, Channel, Mute, RF Level, Transmitter Battery Status) |
| Housing | Metal |
| Dimensions | 16 x 12.1 x 2.8" / 40.6 x 30.7 x 7.1 cm |
| Weight | 3.3 lb / 1.5 kg |
Transmitter
| Transmitter Type | Bodypack |
| RF Output Power | 10 mW |
| Audio I/O | 1 x TA4/Mini XLR 4-Pin Male Input (Lockable) |
| Included Cable Connector | 1/4" TS |
| Auto-Level Control | No |
| Frequency Response | 30 Hz to 18 kHz |
| Sync Method | IR |
| Antenna | 1 x Flexible Whip, Fixed |
| Power Requirements | Battery |
| Battery Type | 2 x AA |
| Approx. Battery Life | 12 Hours |
| Display & Indicators | Backlit LCD (Audio Level, Battery Status, Channel, Signal Strength) |
| Housing | Metal |
Microphone
| Microphone Type | Headset |
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Outputs | 1 x TA4/Mini XLR 4-Pin Female (Lockable, on Attached Cable) |
Microphone 2
| Microphone Type | Lavalier |
| Sound Field | Mono |
| Capsule | Condenser |
| Polar Pattern | Cardioid |
| Outputs | 1 x TA4/Mini XLR 4-Pin Female (Lockable) |
Charging Case
| Capacity | Not Specified by Manufacturer |
