Product Details
＋

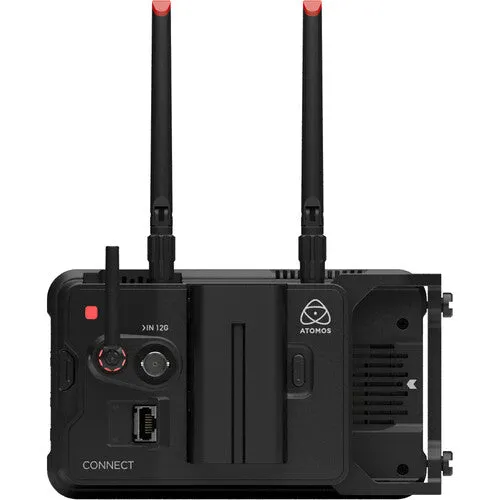

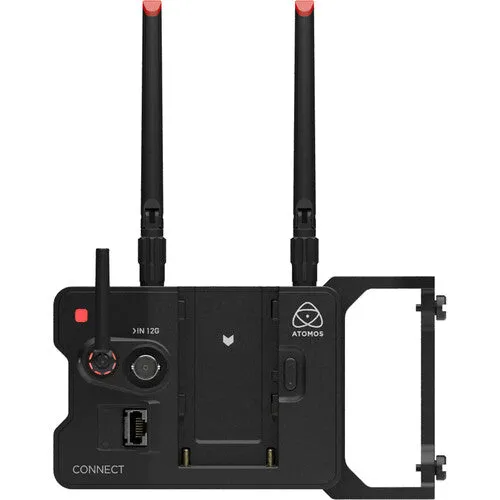

Expand the video and network capabilities of your Ninja V or Ninja V monitor with the Atomos CONNECT. Designed to fit flush to the back of your compatible monitor and secured via two screws, the CONNECT features a 12G-SDI input and antennas for Wi-Fi 6 capabilities. The CONNECT supports Bluetooth LE and Gigabit Ethernet with the integrated LAN input so you can stream to networked video switches, additional monitors, or destinations like YouTube, Facebook, and Twitch.
Camera to Cloud Interface
Utilize the CONNECT Camera to Cloud workflow to upload proxy files, capture full-resolution footage, and collaborate in real time via Frame.io, Dropbox, or Sony Ci media. Atomos Cloud Studio allows network-enabled devices to live stream to popular platforms and custom RTMP/S locations.
Wireless Control
Use the AtomRemote app with your iOS or macOS device and control your CONNECT unit remotely. Configure settings from up to 49.2' away using the device's Bluetooth LE technology. Define camera connections, select Gamma/EOTF, adjust Gamut settings, control playback, and utilize other input monitoring tools. Output control options include video resolution, LUT preview, and HDR output.
Wireless Timecode
Atomos AirGlu wireless timecodes work together to seamlessly sync your connected camera's timecode for improved system integration. Relay recording, battery status, and disk capacity information to the server unit, which can be any AirGlu-enabled device.
Dual Recording
Create a main Apple ProRes or Avid DNxHR/HD recording and an HEVC H.265 proxy recording with matching timecode and metadata using the CONNECT's dual recording feature. The clips are then uploaded to the cloud for real-time collaboration. Proxy clips can be reviewed using Frame.io by remote team members, and editors can begin cutting footage.

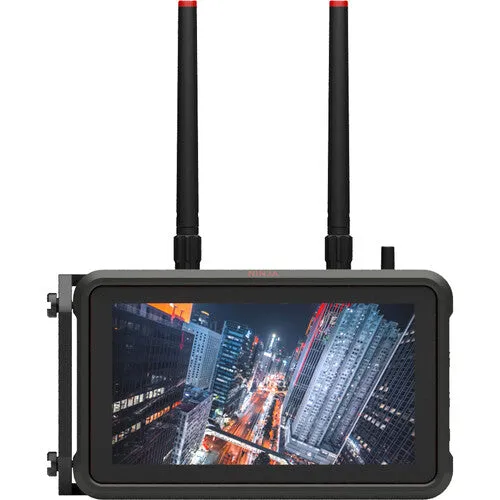

Compatible, Compact Form Factor
The slender profile of the CONNECT complements the compact form factor of the Ninja V and Ninja V monitors to avoid adding bulk to your preexisting gear configuration. An L-series battery slot can power the accessory.
Specifications
General
| Compatibility | Atomos Ninja V Atomos Ninja V |
Inputs / Outputs
| Video I/O | 1 x BNC (12G-SDI) Input |
Wireless
| Wireless | Wi-Fi 6 (802.11ax) *Built-In |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Bluetooth | 2.0 LE |
Power
| Power Source | Battery (Not Included) |
| Battery Type | 1 x Sony L-Series |
Physical
| Color | Black |
| Dimensions | 5" / 127 mm |
| Weight | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 1.535 lb |
| Box Dimensions (LxWxH) | 7.6 x 5.6 x 4.2" |
