Product Details
＋

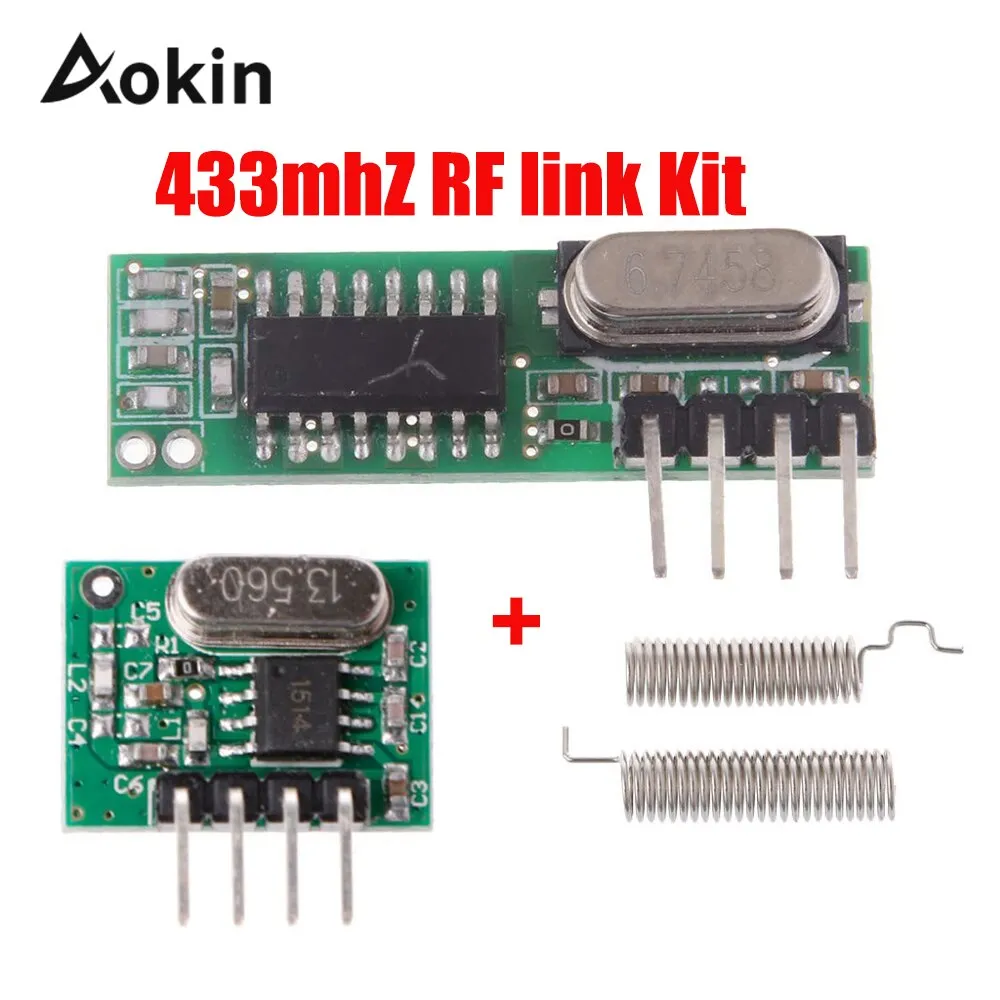

433 Mhz Superheterodyne RF Receiver and Transmitter Module 433Mhz Remote controls For Arduino uno Wireless module Diy Kits
Product Features
1.Support ASK / OOK modulation, the receiver sensitivity of -108dBm;
2.Operating frequency: 433.92 MHz, bandwidth of about ± 150KHz;
3.mains input voltage range: 2.2V-5V;
Working current: Type :2.1mA (Requirement:VDD=5V) ; Type :2.1mA (Requirement:VDD=3V)
4. Quiescent Current: 1uA
5. Low power consumption;
6. good selectivity and spurious radiation suppression, and easy to pass CE / Fcc international certification;
7. Good local oscillator radiation suppression, multiple receiver module to work with (ie, more than single income) and will not interfere with each other, used together without affecting the receiving distance;
8. multiple transmission rates, the general module for 2KHz, up to 10KHz;
9. Temperature range: -40-85 °C

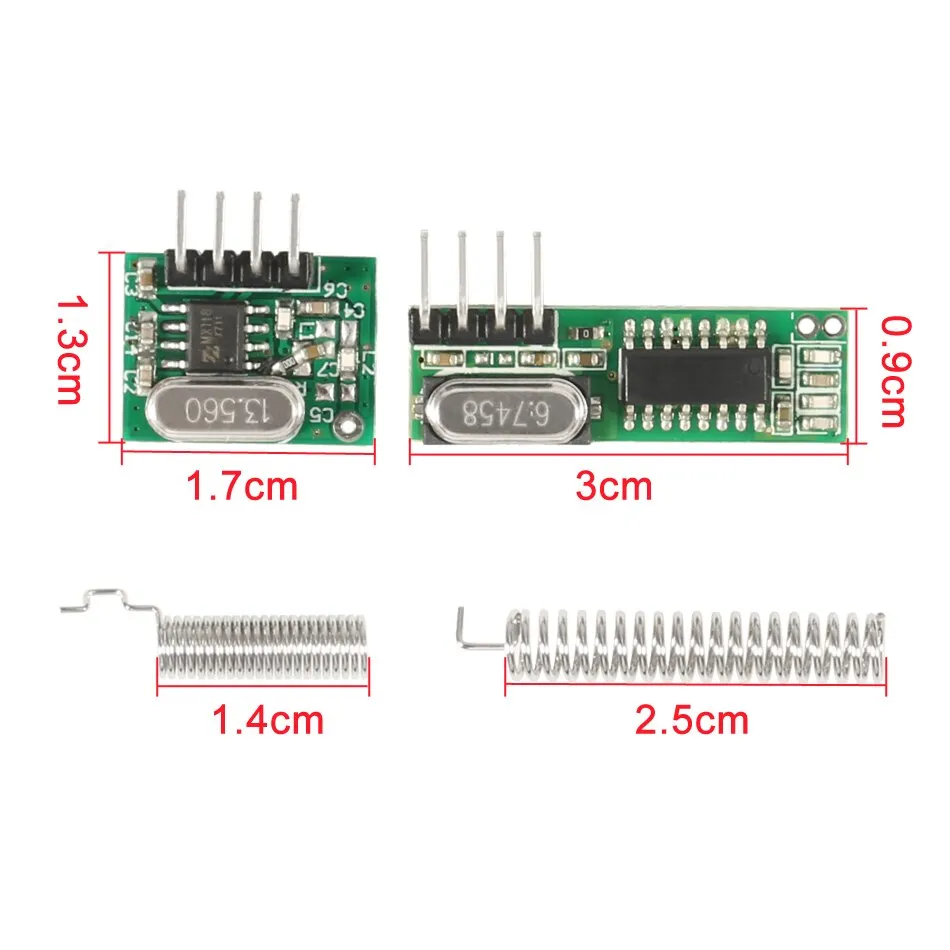

10. ultra-small size of 30 × 9 × 1 (mm) (can be customized according to customer)
11.External antenna: 32CM single core wire, wound into a spiral
Circuit schematics
(
433.92MHz 2.5kbps typical circuit)

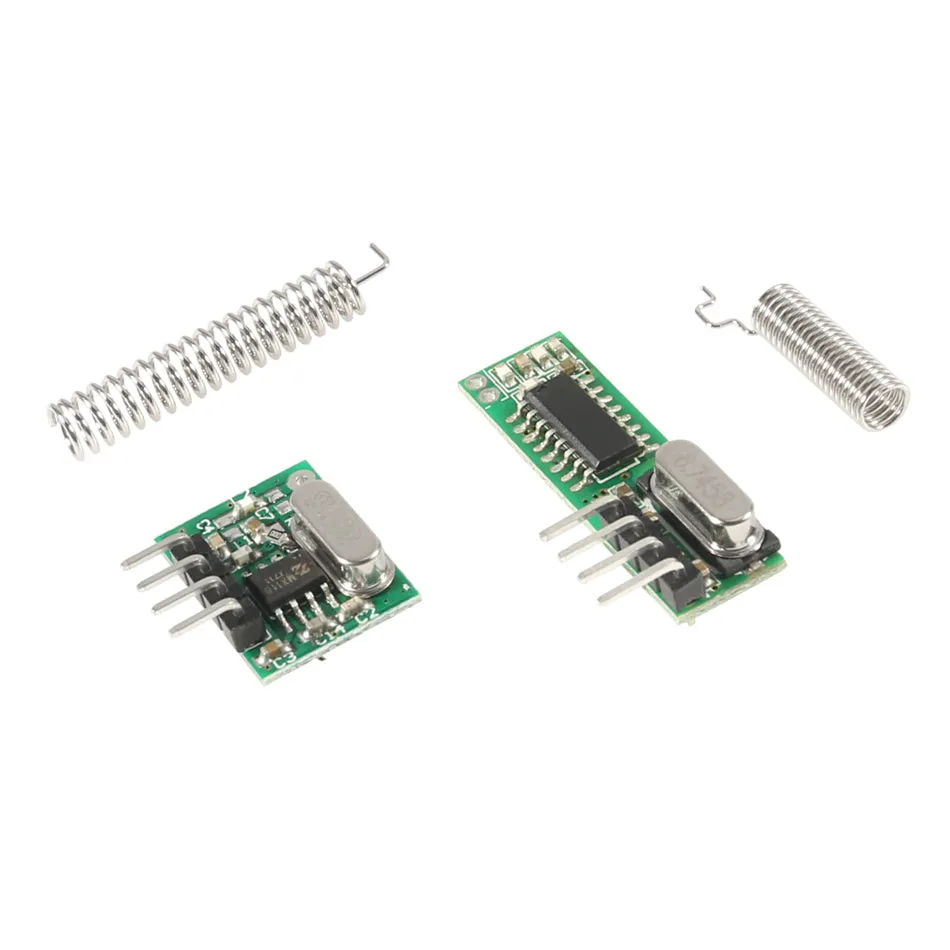

Package Included:

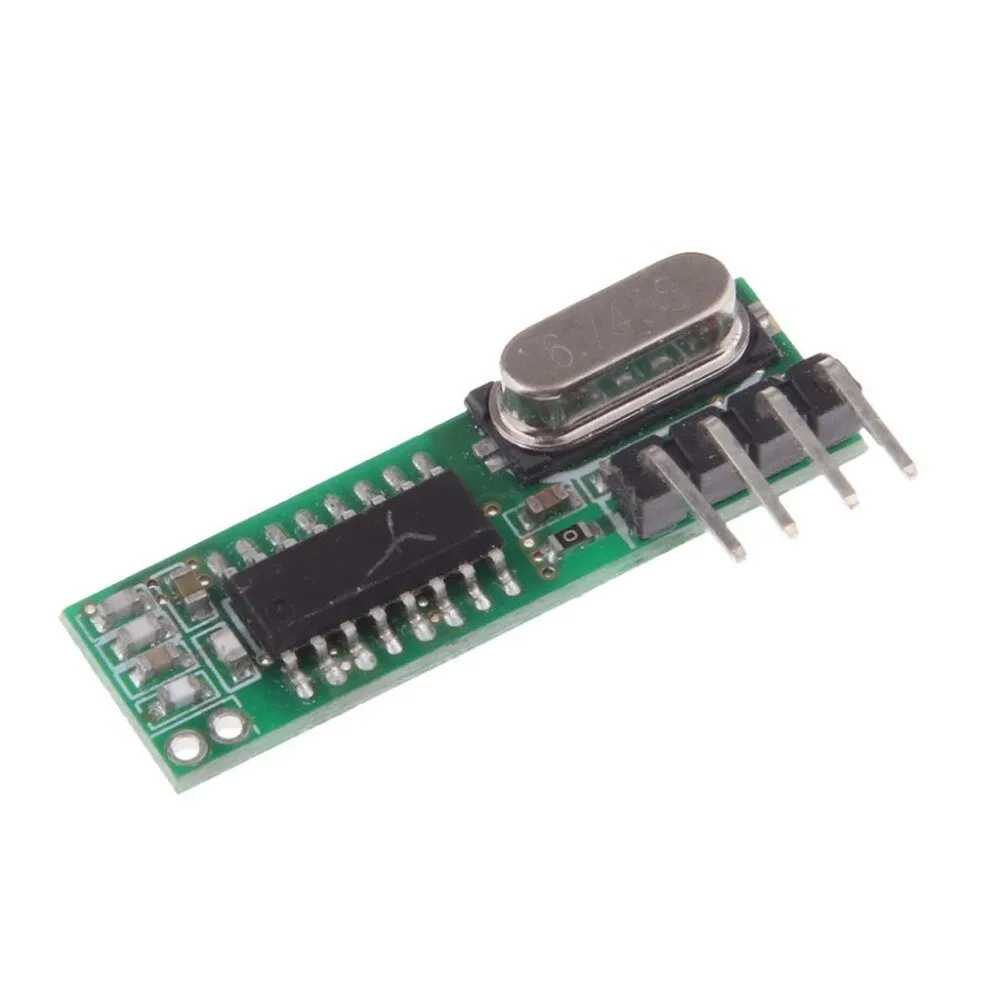

1 X Receiver module (RX470-4)

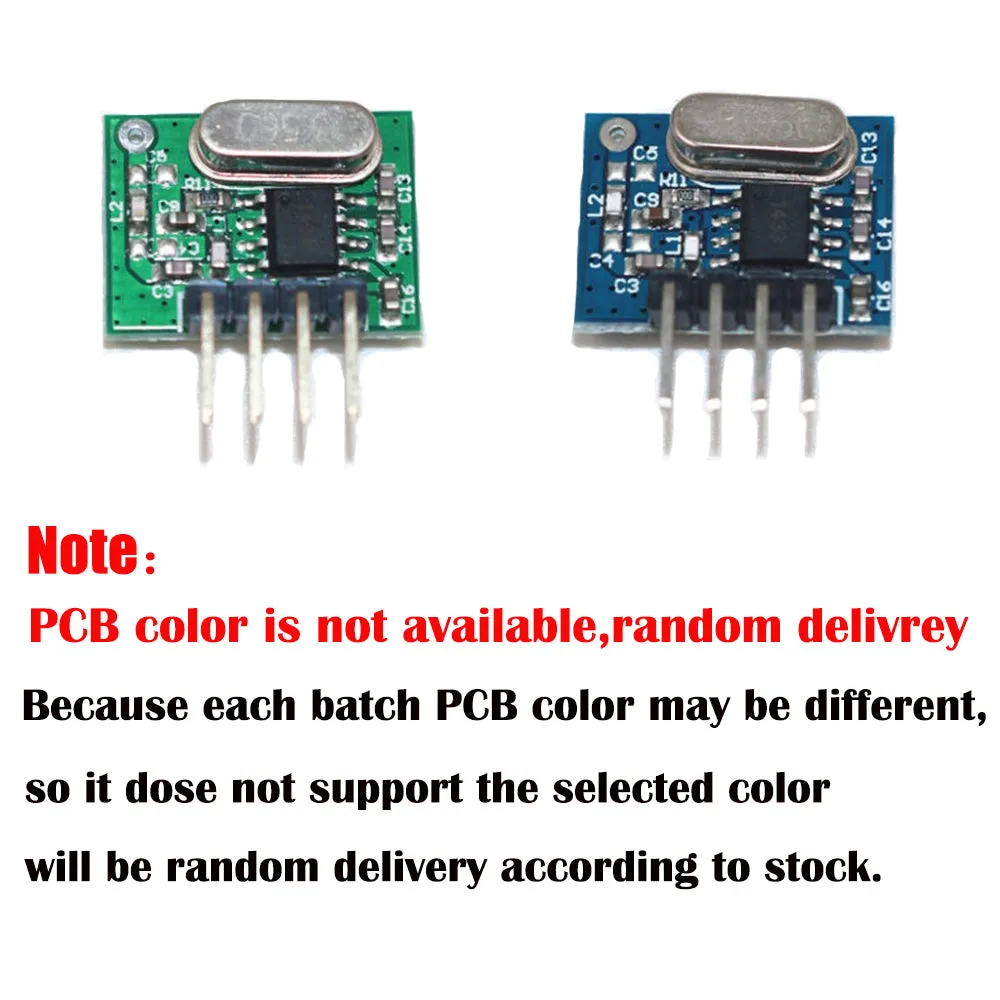

1 X Transmitter module (WL102-341)

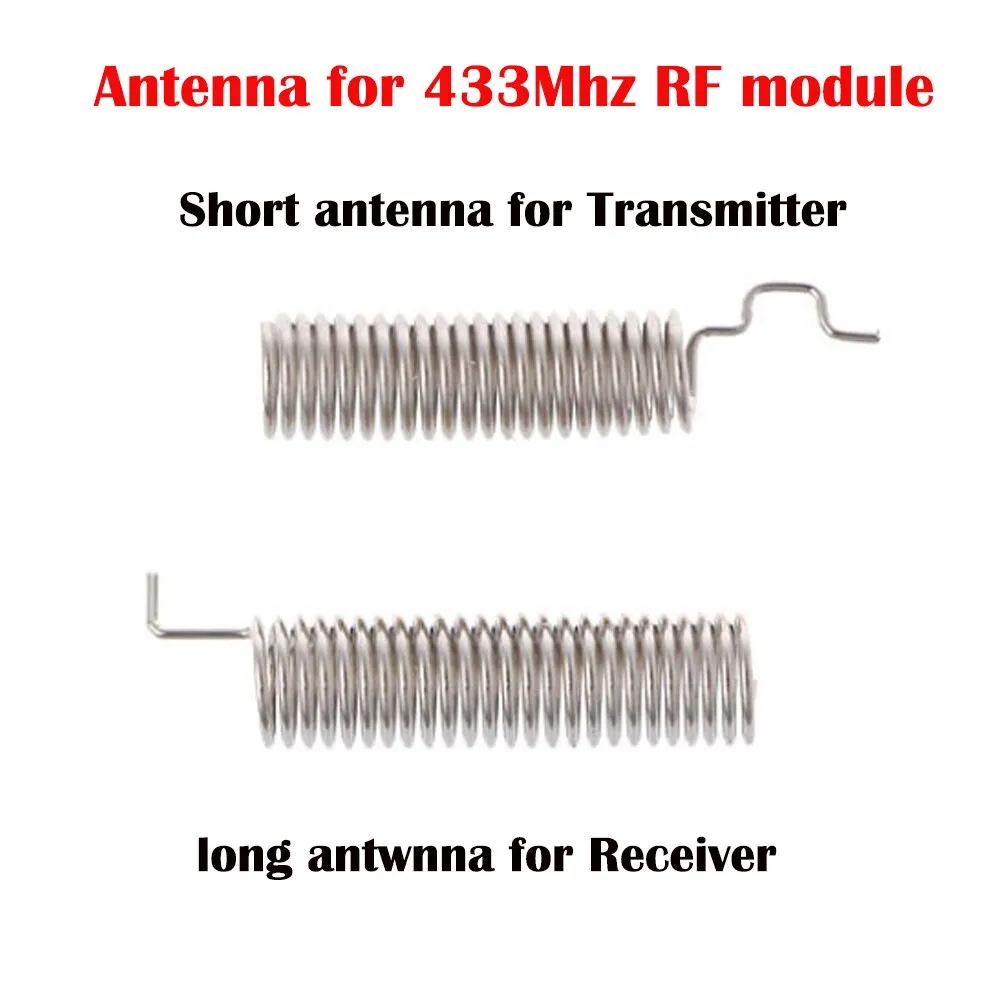

2X Antenna (Short antenna for Transmitter; long antenna for Receiver.)
